Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse

10
MOQ
$299
harga
Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Bahan bilah: besi cor
Bahan kipas: Aluminium
Bahan penutup: Baja galvanis
Tipe Kipas: sentrifugal
Catu daya: 380v
Volume Udara: 2600-6500cfm
Kecepatan udara: 30 m/dtk
Daya motor: 1350-3400W
Tingkat kebisingan: 70-74db
Jarak efektif: 7-8m
Diameter roda kipas: Φ160mm
Ukuran: 900-2000x352x306mm
Jumlah penggemar: 2-5pc
Frekuensi tegangan: 380V/60HZ
Jenis pemasangan: Kipas angin
Menyoroti:

Powerful Air Volume 30m/s Industrial Air Curtain

,

380V Power Supply Industrial Air Curtain

,

2600-6500CFM Air Volume Industrial Air Curtain
Informasi dasar
Tempat asal: Guangdong, Cina
Nama merek: Theodoor
Sertifikasi: CCC
Nomor model: FM-6509A
Syarat-syarat pembayaran & pengiriman
Deskripsi Produk

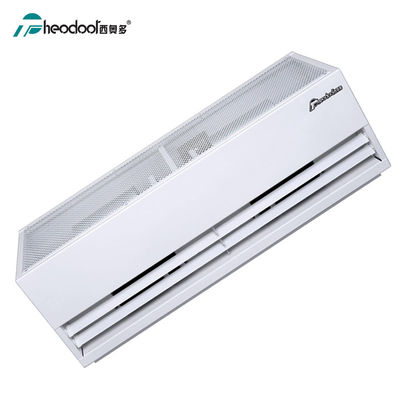

Industrial Air Curtain with Powerful 30m/s Airflow for Factory and Warehouse Applications
This high-performance industrial air curtain creates a powerful air barrier (up to 30m/s velocity) ideal for factory entrances, warehouse doors, terminals, and other commercial openings. Its durable construction and efficient design provide reliable performance in demanding environments.
Key Features

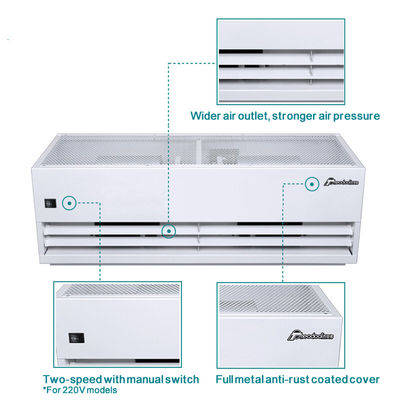

  • Robust Construction: Square reinforced structure made from galvanized steel with powder coating for superior durability and resistance to deformation
  • Powerful Airflow: Centrifugal metal fan blower (Φ160 diameter) delivers exceptional air velocity up to 30m/s
  • Large Air Outlet: Designed for maximum air volume coverage
  • Stable Performance: Steel centrifugal turbine fan and high-velocity motor ensure reliable operation in special environments
  • Versatile Applications: Suitable for plants, cold storage facilities, garages, workshops, and other industrial settings
Technical Specifications
Model Fan Wheel Dia. (mm) Dimensions (mm) Voltage/Frequency (V/Hz) Motor Power (W) Air Volume (m³/h) Air Velocity (m/s) Number of Fans Noise (dB) Effective Range (m)
FM-6509A Φ160 900×352×306 380/60 1350 4510 30 2 70 7-8
FM-6510A Φ160 1000×352×306 380/60 1450 4950 30 2 70 7-8
FM-6512A Φ160 1200×352×306 380/60 2100 6760 30 3 71 7-8
FM-6515A Φ160 1500×352×306 380/60 2700 9000 30 4 72 7-8
FM-6518A Φ160 1800×352×306 380/60 2900 10000 30 4 73 7-8
FM-6520A Φ160 2000×352×306 380/60 3400 11200 30 5 74 7-8
Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse 0 Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse 1 Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse 2
Frequently Asked Questions
What are the main functions of an air curtain?
  • Dust and insect prevention
  • Odor isolation
  • Energy savings
  • Comfortable heating
How to select the right air curtain?
Consider these factors when choosing an air curtain:
  • Application requirements
  • Door height and width
  • External wind conditions
  • Building static pressure
  • Door structure
  • Ambient temperature
  • Unit size and design
  • Noise level requirements
  • Power consumption
