Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control

100
MOQ
$199
harga
Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Jenis pemasangan: Dinding / Mount Window
Berat: 15 kg
Jenis Fan Motors: Ac
Panjang Tersedia: 60cm,90cm,100cm,120cm,150cm,180cm,200cm
Daya panas: 3kw, 4kw, 5kw, 6kw, 8kw, 10kw, 12kw
Tegangan/frekuensi: 220v atau 380v /50Hz
Elemen Pemanas: PTC PEMANAS
Kontrol: Remote+buttom
Bahan penutup: Aluminium
Tenaga motorik: <160W, <200W, <230W, <300W
Kecepatan udara: 8,5-9,5 M/detik
Volume Udara: 1200 m3/jam, 1700 m3/jam, 2200 m3/jam, 2700 m3/jam
Tingkat kebisingan: 57dB, 58dB, 59dB, 60dB
Ukuran Produk: 900x190x260mm, 1200x190x260mm, 1500x190x260mm, 1800x190x260mm
Kekuatan pemanas: 6/4/2 KW, 8/5/3 KW, 10/7/3 KW, 12/8/4 KW
Menyoroti:

PTC Ceramic Heater Air Curtain

,

220v or 380v Industrial Air Curtain

,

50Hz Heated Air Curtain
Informasi dasar
Tempat asal: Guangdong, Cina
Nama merek: Theodoor
Syarat-syarat pembayaran & pengiriman
Deskripsi Produk

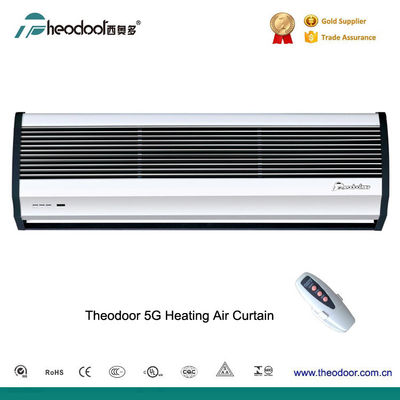

5G Series Air Heat Curtain with PTC Ceramic Heater
Theodoor heating air curtain creates an invisible air barrier that maintains clean, warm air for indoor environments.
Key Features
  1. PTC Heater - Safe operation with high power output creates temperature-differentiated air barriers to prevent cold airflow and ensure comfortable heating
  2. Dual airflow modes - Provides heating or normal air to effectively block cold draughts while maintaining interior comfort
  3. Adjustable speeds - High and low speed settings with wireless remote control for versatile environment adaptation
  4. Overheat protection - Built-in safeguards for both heater and motor ensure energy efficiency and protection during normal operation
  5. Safety delay - 30-second warm air delay after shutdown allows PTC heater to cool, extending product lifespan
Technical Specifications
Model Product Size (mm) Voltage (V ~ Hz) Motor Power (W) Heater Power (KW) Air Speed (M/S) Air Volume (m³/h) Net Weight (Kg) Noise Level (dB)
RM-1209S-D/Y5G 900x190x260 220v ~50Hz <160 6 / 4 /2 8.5-9.5 1200 13.5 57
RM-1212S-D/Y5G 1200x190x260 <200 8 / 5 /3 1700 16 58
RM-1215S-D/Y5G 1500x190x260 <230 10 / 7 /3 2200 18.5 59
RM-1209S-3D/Y5G 900x190x260 380v ~50Hz <160 6 / 4 /2 8.5-9.5 1200 13.5 57
RM-1212S-3D/Y5G 1200x190x260 <200 8 / 5 /3 1700 16 58
RM-1215S-3D/Y5G 1500x190x260 <230 10 / 7 /3 2200 18.5 59
RM-1218S-3D/Y5G 1800x190x260 <300 12 / 8 /4 2700 24 60
Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 0 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 1 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 2
What is an Air Curtain?

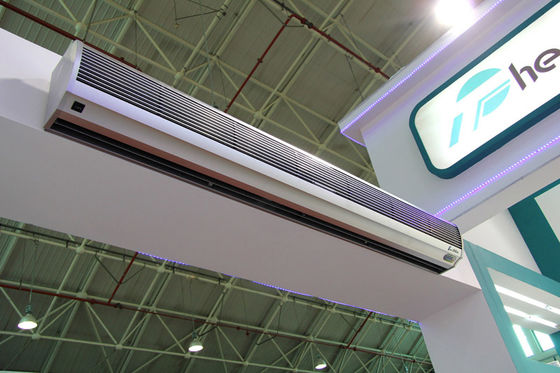

Theodoor air curtains are installed above entryways of stores, restaurants, hotels and other commercial spaces. They effectively isolate indoor and outdoor environments, maintaining temperature and humidity levels. Particularly effective when used with air conditioning systems, they preserve indoor climate conditions while reducing energy consumption. Air curtains also prevent infiltration of dust, pests, and harmful fumes from outside, creating a comfortable and clean indoor environment.
Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 3
Why Choose Our Air Curtains?
  • 22+ years experience in manufacturing and exporting air curtains with over 100 models for various environments
  • Professional engineering team dedicated to continuous research and development
  • Advanced technology using modern machinery to ensure product performance and reliability
  • Premium materials selected for safety, efficiency, energy conservation and environmental protection
  • Rigorous quality control with 100% product performance testing
  • Cost-effective solutions offering long-life, high-reliability products with superior performance
  • Responsive support with prompt attention to customer queries
Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 4 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 5 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 6 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 7 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 8
